Description
Cutter bodies are machined from 416 stainless steelChamfers the inside case mouth to an angle of 14°.Chamfers the outside case mouth to an angle of 30°Blades are made from carbide.The Taper-Lock cutters are factory adjusted and tested for each caliber. Utilizes a through shaft screw design for precision alignmentAll pilots are Caliber-Specific.
Taper-Lock Cutter Replacement
Disconnect Power Source Before making Any Adjustment

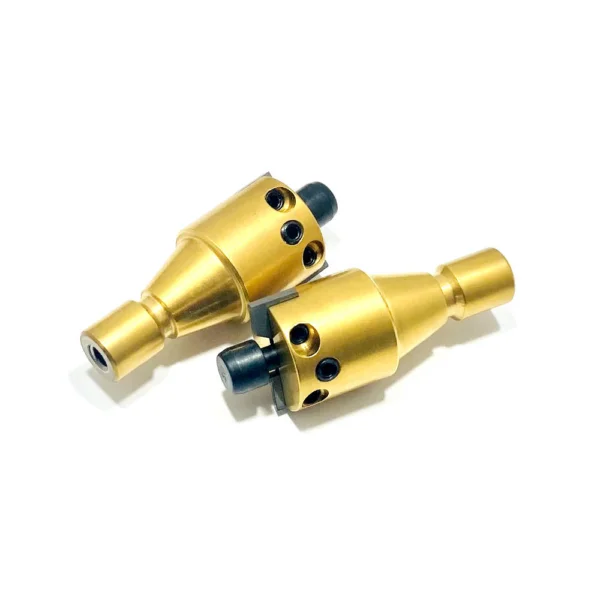

Refer to pictures above
Insert 5/32 Allen wrench into socket head screw in the middle of the pulley
Insert 11/16 wrench on the front of drive shaft
Holding the Allen wrench fixed, loosen the cutter with the 11/16 wrench
Once loose, remove socket head screw with fingers
Replace cutter making sure both tapers are clean
Hold cutter firm against the female taper with fingers reinsert the 10/24 socket head screw until both parts are snug
Inserted the 10/24 Allen wrench holding it fixed tight cutter to the shaft with 11/16 wrench until snug.
Do not over tighten assembly
