Description
- Wide field of view, exceptionally comfortable eyebox and high contrast image
- Precise, clearly defined click mechanism and reliable repeat accuracy
- Optional left or right side windage

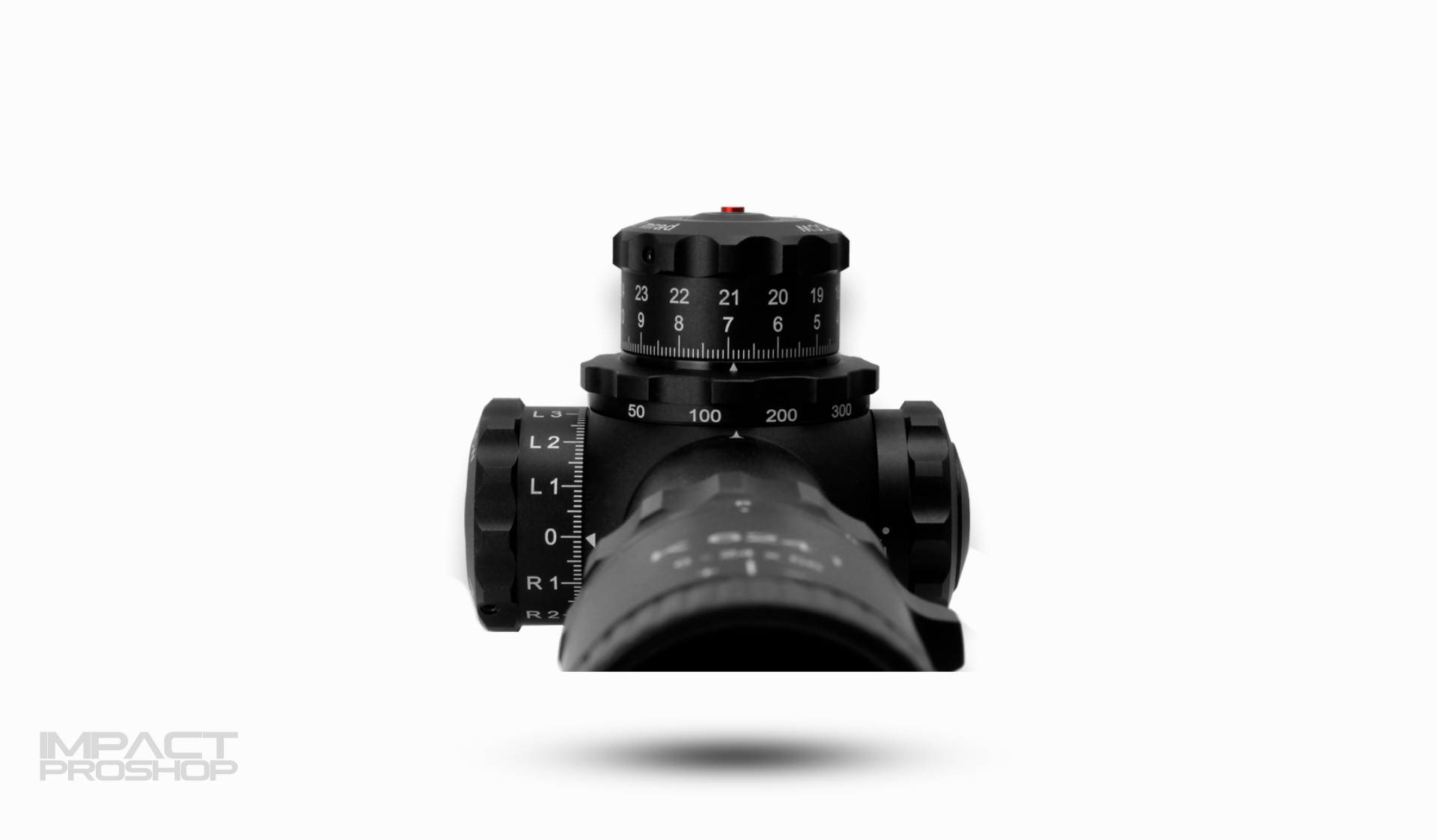

- Parallax wheel integrated into the elevation turret (patented) (50 m to ∞)
- Precise illuminated reticles in 1st focal plane
| Magnification: | 6 – 24 |
| Objective lens diameter: | 56 mm |
| Exit pupil: | 9.4 – 2.3 mm |
| Eye relief: | 90 mm |
| Field of view: | 6.8 – 1.7 m/100 m |
| Diopter compensation: | +2 / -3.5 dpt |
| Twilight factor (DIN 58388): | 18.3 – 36.7 |
| Impact correction per click: | .1 MRAD | ¼ MOA |
| Adjustment range (E/W): | 2.5 / 1.1 m/100 m |
| Parallax adjustment: | 50 m till ∞ |
| Tube diameter: | 34 mm |
| Length: | 405 mm |
| Weight: | 950 g |
| Focal plane: | 1 |
| Illuminated: | Yes |
| Warranty: | 10 years |
