MDT ELITE SCOPE RINGS

R5,150.00R5,525.00

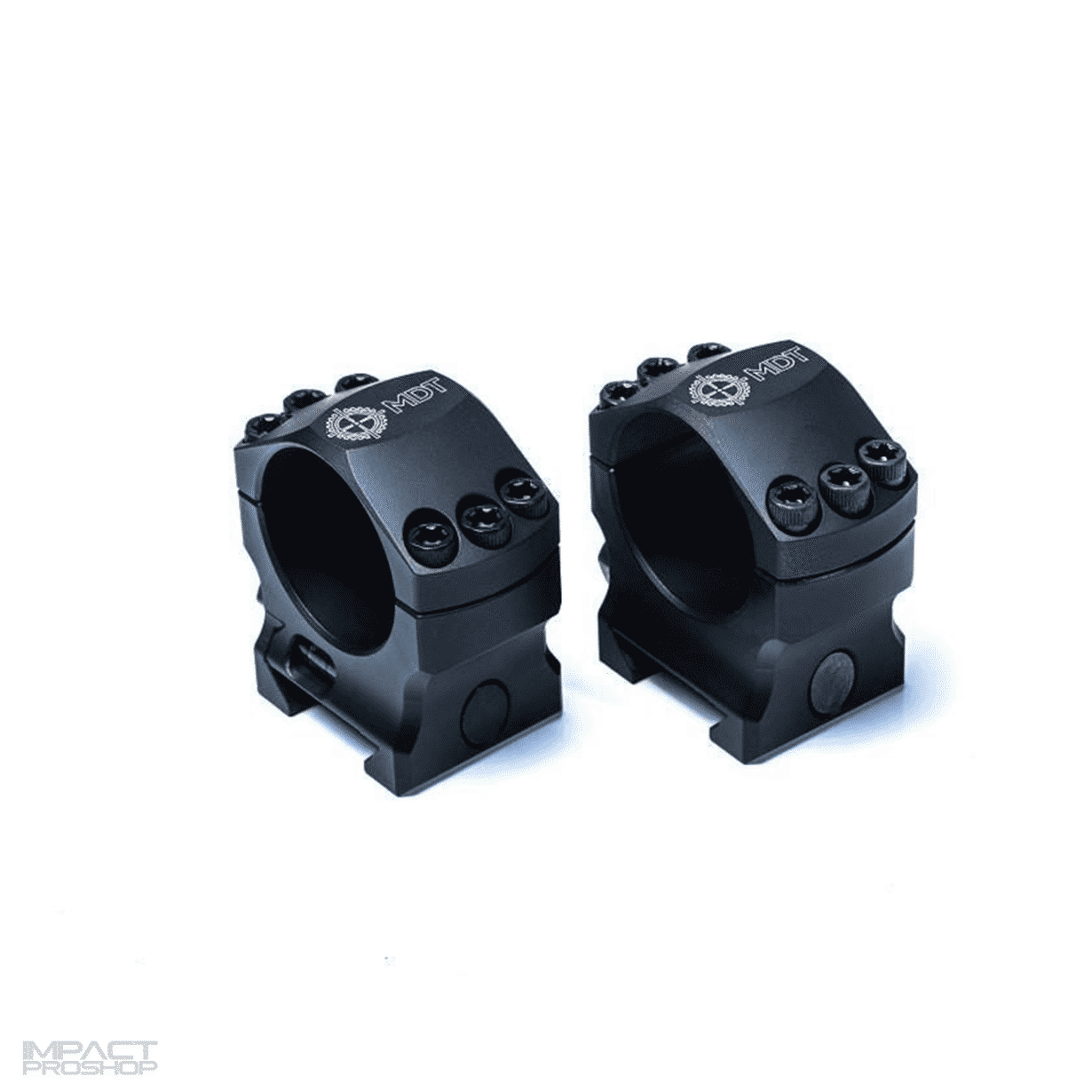

The MDT Elite Scope Rings offer a solid, lightweight mounting system for your optics. Made from precision-machined aluminum, they are available in 30mm and 34mm diameters.

The two diameter options are available in four different heights (measured from top of rail to center of bore).

Clear
SKU: N/A Category: Tags: ,

Description

SPECIFICATIONS

  • Designed for ultimate precision and strength
  • 25mm (0.984”) of lateral contact with scope tube
  • 30mm (1.181”) of lateral contact with mounting rail
  • The main body is machined on an automated seven-axis, high-end CNC machine tool
  • Extra wide profile provides extremely stable mounting
  • The bottom rail interface is machined at the same time as the scope clamp interface, guaranteeing all rings are square and parallel
  • CMM checked to 1.5 millionths of an inch precision
  • Machined from Billet 7075-T651 Aluminum – 1/3 the weight of steel with similar strength
  • Extra thick clamp system will never bend, fatigue, or become loose with use
  • Built-in bubble level on medium, high, and extra-high rings (No bubble level on low rings)
  • Stepped base-to-cap interface allows the fasteners on one side to be tightened before making final scope alignment adjustments
  • Six oversized #8-32 Grade 8 fasteners used for clamping the scope
  • Sleek curves blend well into most scopes

Additional information

Weight 0.35 kg
Dimensions 20 × 10 × 12 cm
Diameter

30mm, 34mm

Height

Low 0.82in, Medium 1in, High 1.25in, X-High 1.5in
