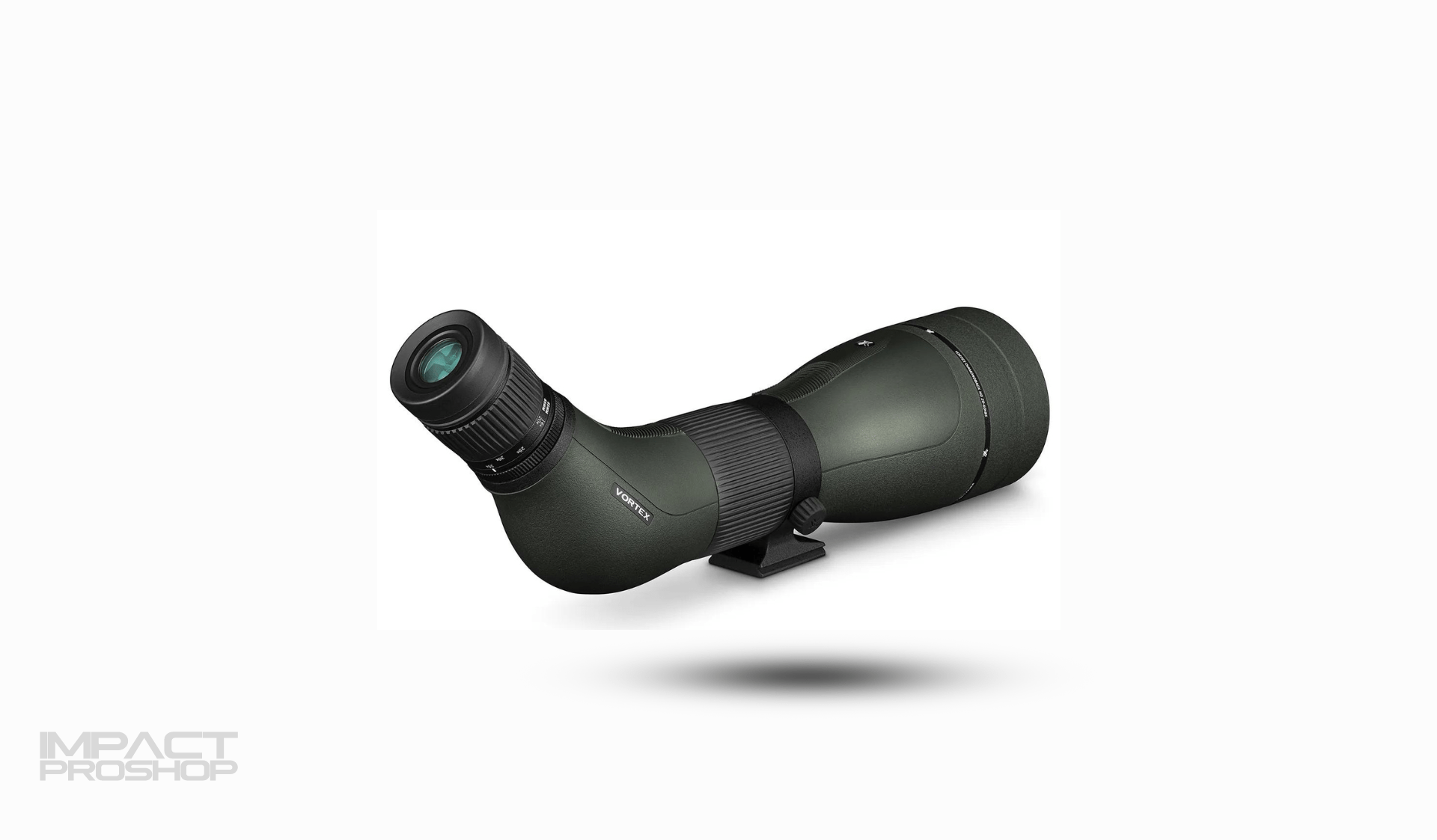

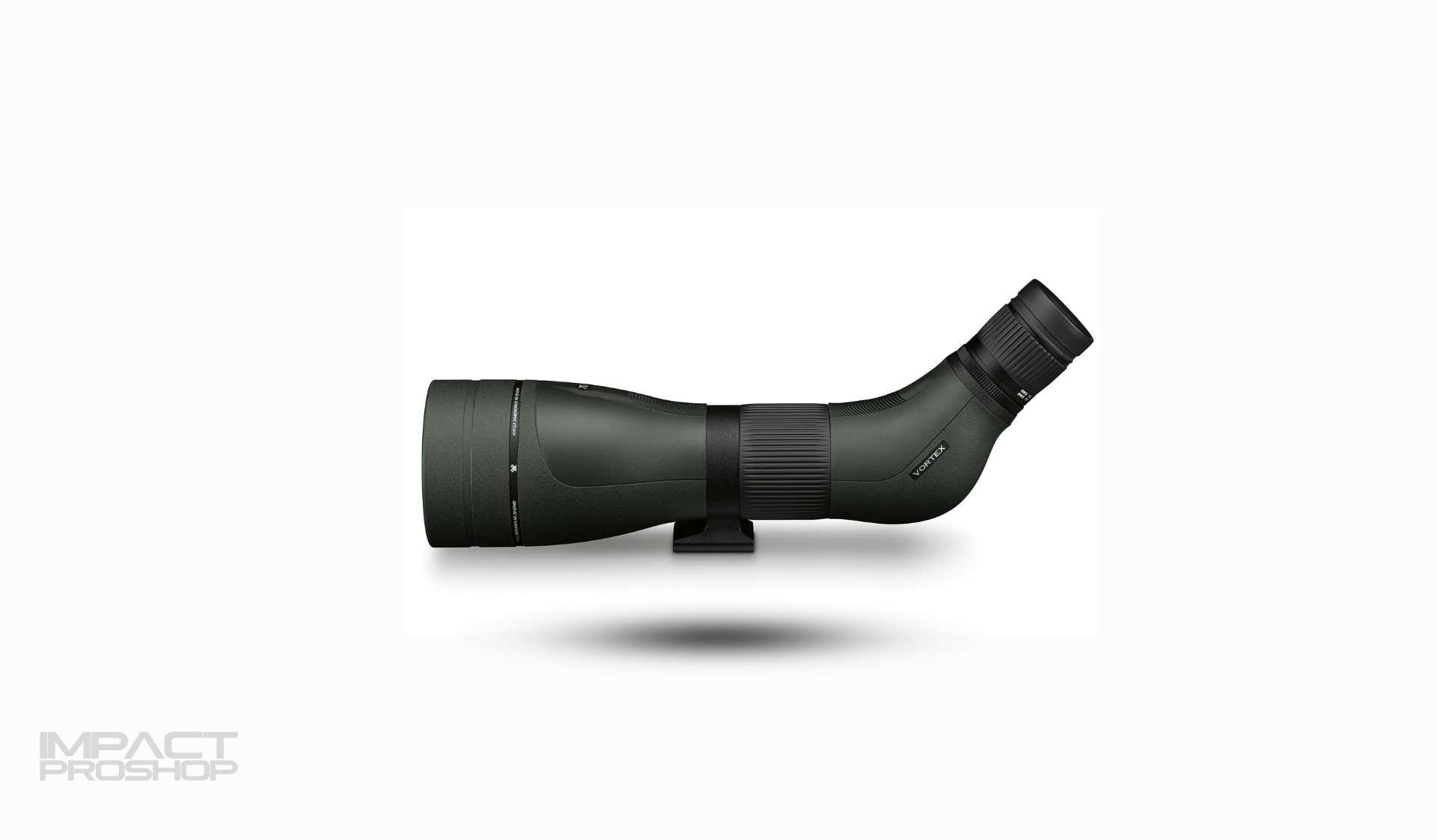

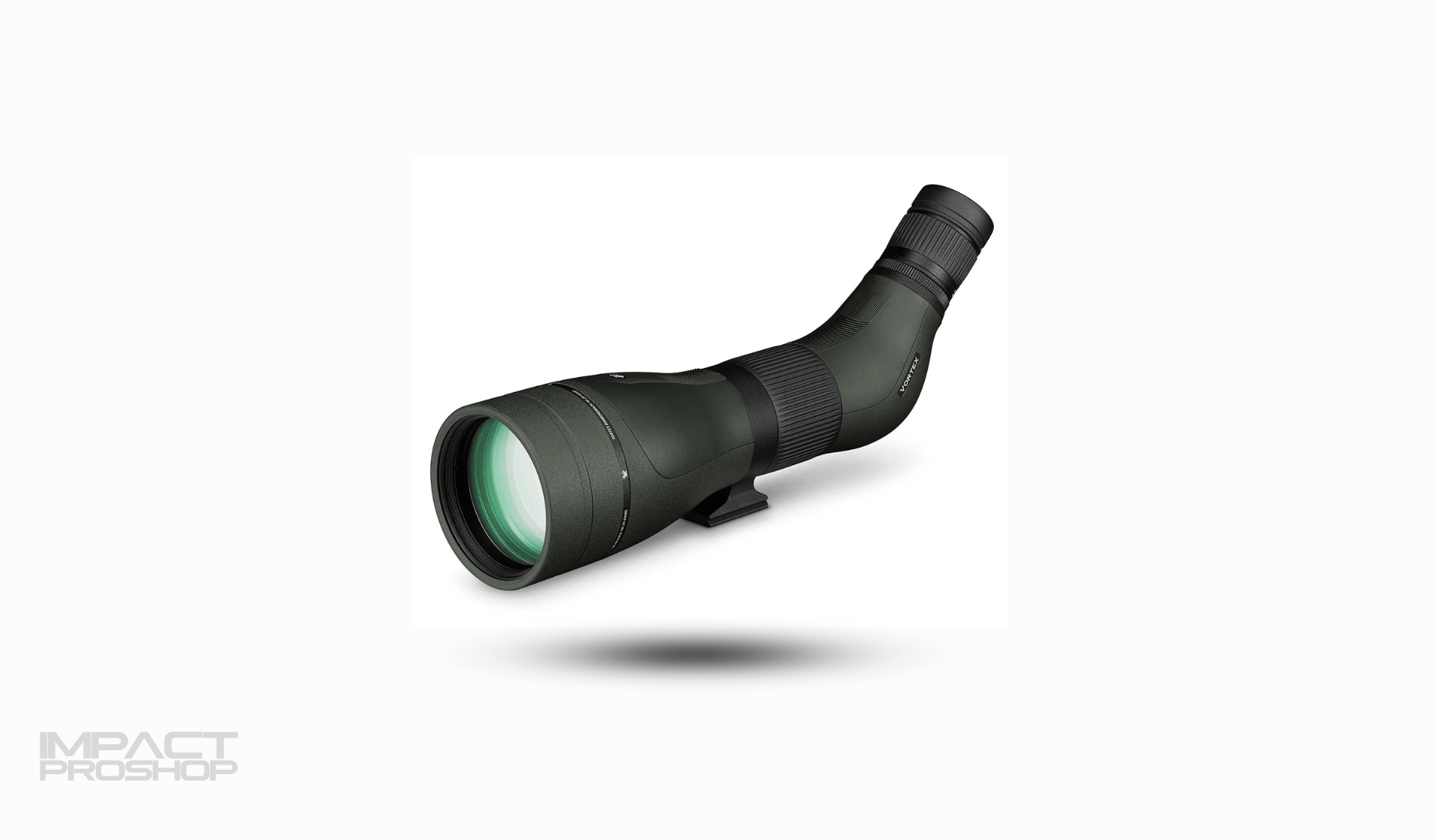

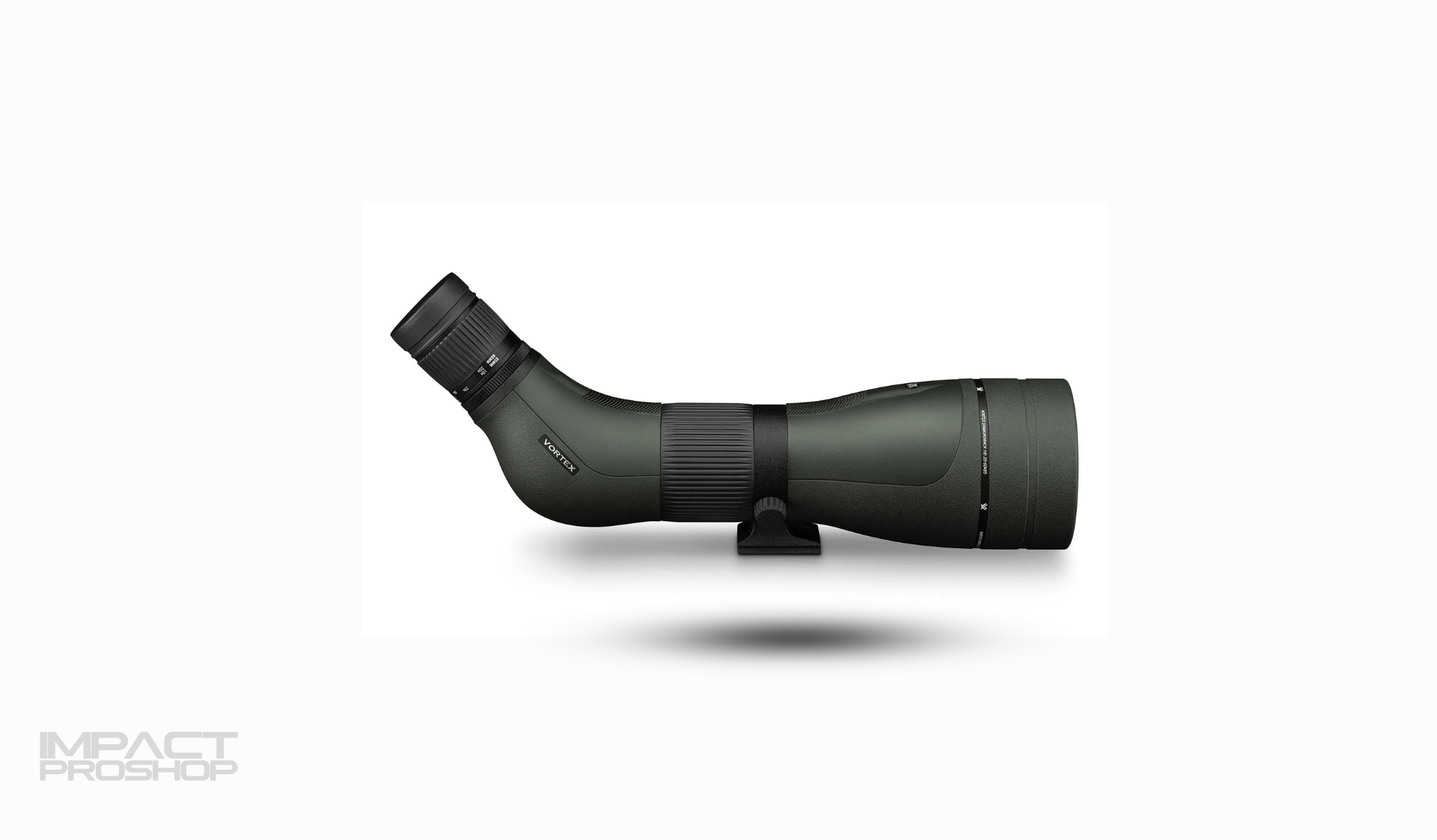

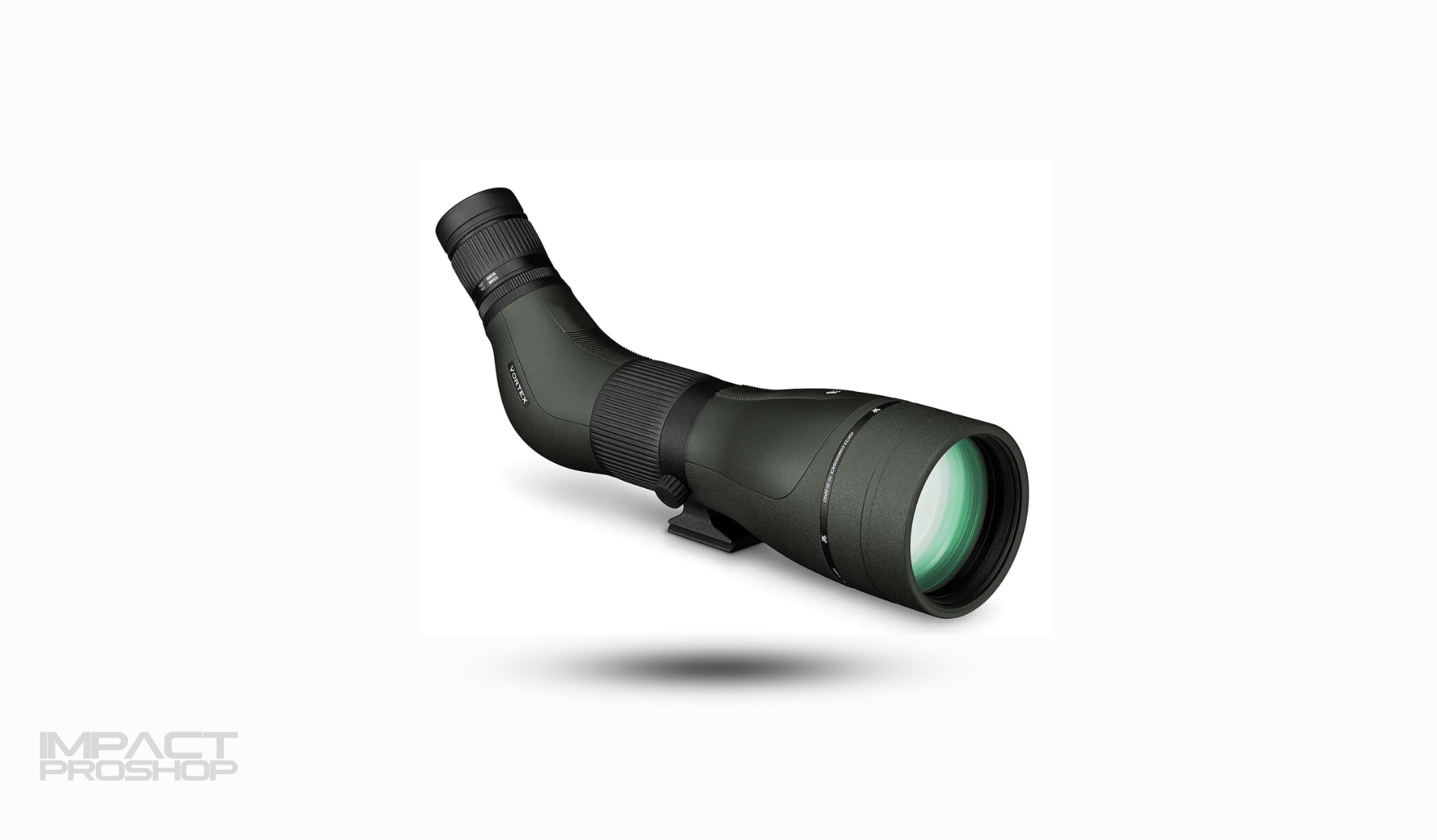

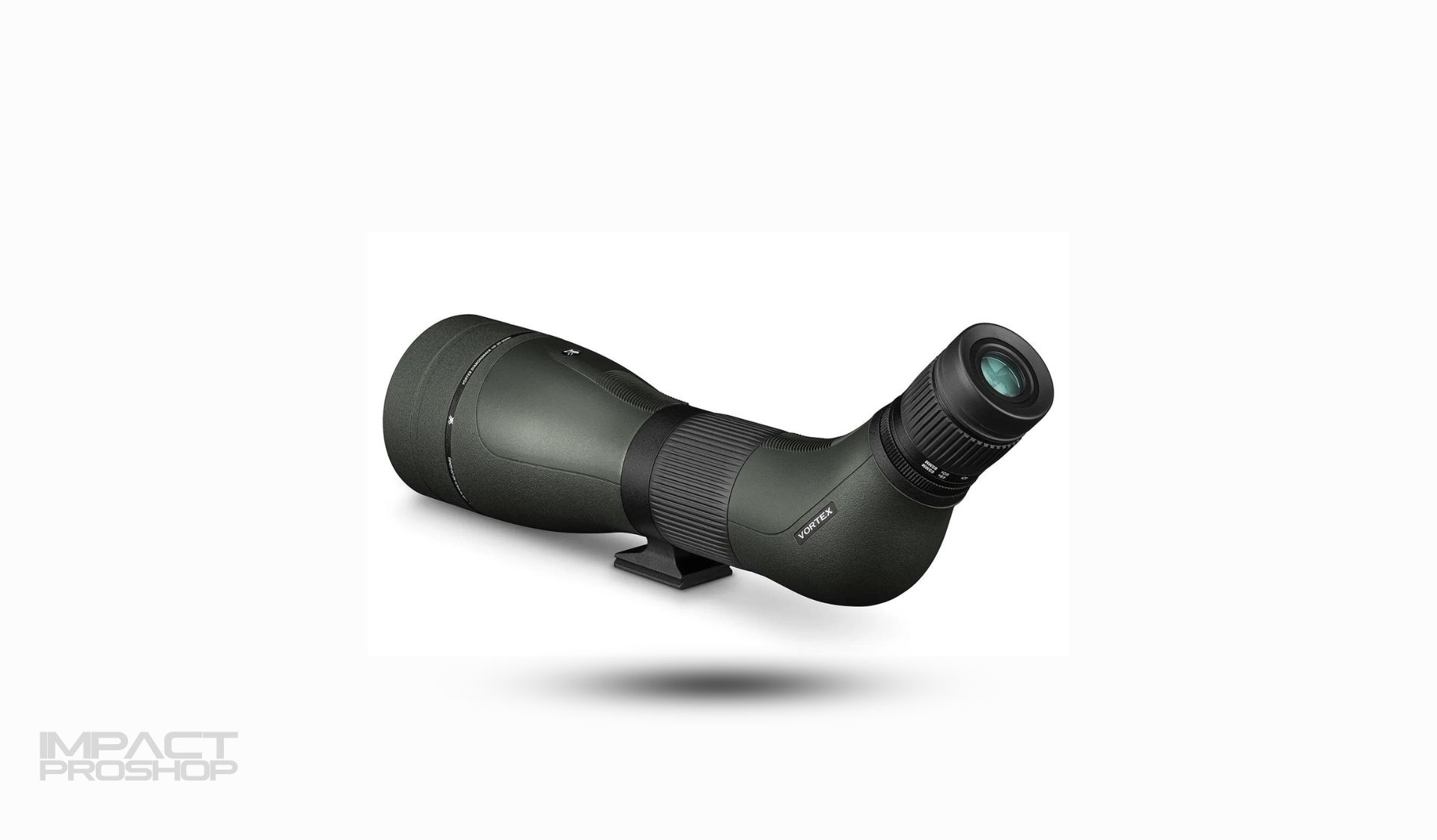

Vortex Diamondback HD


While we strive to keep Vortex products on hand , many are stored at the supplier.Please feel free to reach out to our office to confirm availability before placing your order.

Glassing out west demands an HD optic, but other systems can’t get you the clarity you need to see a tail twitch in low light, or pick a tine out of dense cover. The redesigned Diamondback HD spotting scopes have all the horsepower the long-distance hunter needs, and they excel in lowlight—right when you need it most. We’ve also streamlined the exterior for a sleeker, snag-free profile, building in a helical focus wheel.

SKU: N/A Category: Tag:


Magnification – 20-60x

Objective Lens Diameter -85 mm

Linear Field of View – 108-60 ft/1000 yds

Angular Field of View – 2.1-1.1 degrees

Eye Relief – 20.3-18.3 mm

Length – 16 inches

Weight – 60.9 oz

Exit Pupil – 4.25‐1.41 mm

Close Focus – 24.6 feet


  • Neoprene cover
  • Tethered objective lens cap
  • Tethered ocular lens cap
  • Lens cloth

Additional information

Weight N/A
Dimensions N/A

20-60×85 HD Angled, 16-48×65 HD Angled
